Screw Press Dewatering Machine Working Principles and Features
Detailed Explanation of Screw Press Dewatering Machine Working Principles and Features
As an efficient solid-liquid separation equipment, the screw press dewatering machine is widely used for fiber-based material dehydration due to its unique physical extrusion technology. This article from Zhongtian Xinghuo Machinery will analyze its technical advantages through its working principles and core features.

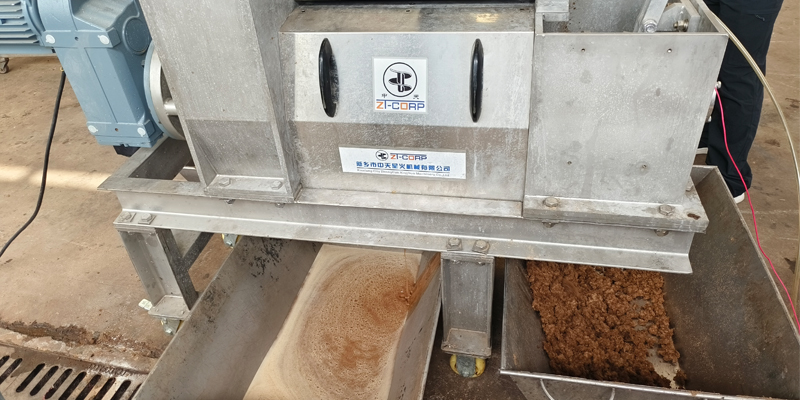

Working Principle
The screw press dewatering machine operates on the superimposed compression principle, relying on the coordinated action of the feed hopper, screw shaft, screen mesh, and tail cone. Materials are evenly conveyed to the feed inlet via pumps or augers. Under the extrusion of the screw blades and filtration through the screen, liquid (water or juice) flows into the collection tray below and is discharged through pipelines. The dewatered residue is transported via a conveyor belt to designated locations.
Core Features
1. Chemical-Free Process, Zero Pollution
Achieves solid-liquid separation purely through mechanical force without adding flocculants or desiccants.
Eliminates chemical residues, making it ideal for food processing (e.g., fruit/vegetable pulp, soybean meal) and eco-friendly applications (e.g., sludge, biomass waste).
2. Energy Efficiency & Cost Reduction
Frequency conversion drive technology: Motor power automatically adjusts with load, reducing electricity consumption by over 40% compared to traditional equipment.
Zero thermal energy consumption: No steam or fuel required, unlike thermal drying processes, directly lowering carbon emissions.
Closed-loop water recycling: Extracted liquid can be treated and reused, minimizing water waste.
3. High Dewatering Rate & Material Integrity
Reduces moisture content in fibrous materials (e.g., wood pulp, straw) from >80% to 45-50% while preserving fiber structure.
Enhances resource utilization: Post-treatment sugarcane bagasse shows a 30% increase in calorific value, boosting value for pulp production, fuel pelletizing, or organic fertilizer manufacturing.
4. Durability & Low Maintenance
Material upgrades: Screw blades and screens use high-chromium alloy steel or tungsten carbide coatings, extending service life to 5-8 years with corrosion/wear resistance.
Modular design: Wear-prone components (e.g., screens) enable rapid replacement, cutting downtime by 70%.
5. Versatile Adaptability
Adjustable screen apertures, screw speed, and pressure accommodate diverse materials:
High-viscosity food waste
Tough Chinese herbal residues
Fine-fiber paper pulp
Applications & Future Development
Screw press dewatering machines are already deployed in papermaking, fruit/vegetable juicing, bioproducts, pharmaceutical/chemical processing, and food industries. Moving forward, integration with IoT technology will enable real-time moisture monitoring and intelligent pressure feedback, driving advancements in smart, eco-friendly dewatering solutions.
As an efficient solid-liquid separation equipment, the screw press dewatering machine is widely used for fiber-based material dehydration due to its unique physical extrusion technology. This article from Zhongtian Xinghuo Machinery will analyze its technical advantages through its working principles and core features.
Working Principle
The screw press dewatering machine operates on the superimposed compression principle, relying on the coordinated action of the feed hopper, screw shaft, screen mesh, and tail cone. Materials are evenly conveyed to the feed inlet via pumps or augers. Under the extrusion of the screw blades and filtration through the screen, liquid (water or juice) flows into the collection tray below and is discharged through pipelines. The dewatered residue is transported via a conveyor belt to designated locations.
Core Features
1. Chemical-Free Process, Zero Pollution
Achieves solid-liquid separation purely through mechanical force without adding flocculants or desiccants.
Eliminates chemical residues, making it ideal for food processing (e.g., fruit/vegetable pulp, soybean meal) and eco-friendly applications (e.g., sludge, biomass waste).
2. Energy Efficiency & Cost Reduction
Frequency conversion drive technology: Motor power automatically adjusts with load, reducing electricity consumption by over 40% compared to traditional equipment.
Zero thermal energy consumption: No steam or fuel required, unlike thermal drying processes, directly lowering carbon emissions.
Closed-loop water recycling: Extracted liquid can be treated and reused, minimizing water waste.
3. High Dewatering Rate & Material Integrity
Reduces moisture content in fibrous materials (e.g., wood pulp, straw) from >80% to 45-50% while preserving fiber structure.
Enhances resource utilization: Post-treatment sugarcane bagasse shows a 30% increase in calorific value, boosting value for pulp production, fuel pelletizing, or organic fertilizer manufacturing.
4. Durability & Low Maintenance
Material upgrades: Screw blades and screens use high-chromium alloy steel or tungsten carbide coatings, extending service life to 5-8 years with corrosion/wear resistance.
Modular design: Wear-prone components (e.g., screens) enable rapid replacement, cutting downtime by 70%.
5. Versatile Adaptability
Adjustable screen apertures, screw speed, and pressure accommodate diverse materials:
High-viscosity food waste
Tough Chinese herbal residues
Fine-fiber paper pulp
Applications & Future Development
Screw press dewatering machines are already deployed in papermaking, fruit/vegetable juicing, bioproducts, pharmaceutical/chemical processing, and food industries. Moving forward, integration with IoT technology will enable real-time moisture monitoring and intelligent pressure feedback, driving advancements in smart, eco-friendly dewatering solutions.
